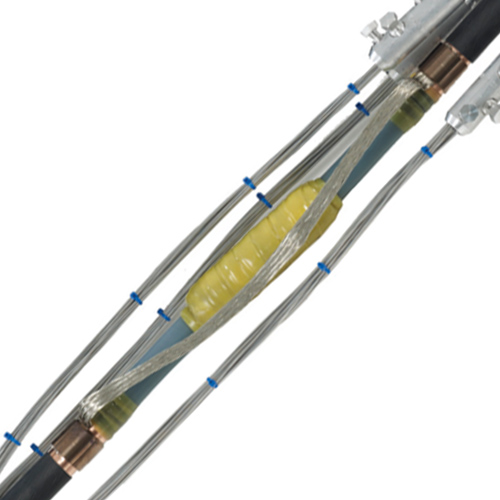

Image for TE-Connectivity 11-33kV Single-Core Straight Joints - AWA cables
For up to date technical data please get in touch
+44 (0) 20 8405 6789
or email: sales@etscablecomponents.com

TE-Connectivity 11-33kV Single-Core Straight Joints – AWA cables

Print this page
All Products

TE-Connectivity SXAW series of heat shrink straight joints for single-core polymeric insulated Aluminium Wire Armour (AWA) cables up to 36kV.

Cable of different cross sections may be joined with these joint kits, if reducing compression splices are used.

The TE-Connectivity SXAW joint kits include an elastomeric insulation sleeve and black, metallic shielding to continue the cable screening, and an outer, sealant lined protective tube.

11kV and 33kV variants of the SXAW joint are available.

Tested to CENELEC HD 629.1 S1.

Add to quote
SKU: SXAW Categories: , , , ,

TE-Connectivity SXAW heat shrink straight joints for 11-33kV single-core polymeric AWA cables.

Order Reference Product Name Minimum Cable Size Maximum Cable Sizes Maximum Voltage Qty Add to quote
SXAW 3121
95mm2
185mm2
11kV
Add
SXAW 3131
185mm2
300mm2
11kV
Add
SXAW 3141
400mm2
500mm2
11kV
Add
SXAW 3151
500mm2
630mm2
11kV
Add
SXAW 6132
120mm2
240mm2
36kV
Add
SXAW 6142
300mm2
630mm2
36kV
Add
