Flexicon Liquid-Tight Conduit

Print this page
All Products

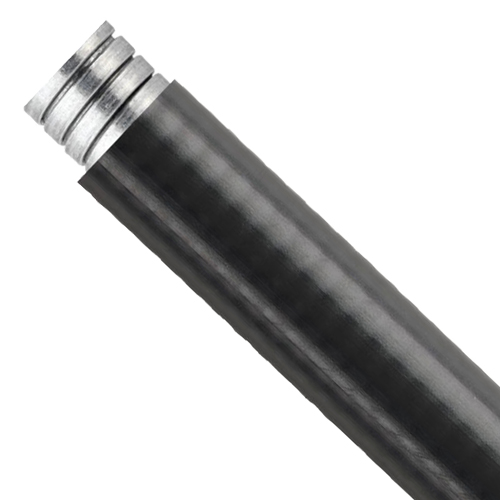

The Flexicon LTP liquid-tight flexible conduit range is constructed from helically-wound, galvanised steel with a smooth, high-temperature and oil-resistant PVC cover.

Used throughout the oil and gas industry and installed within offshore projects as an EXD ATEX-rated system, when installed with Flexicon’s EXD barrier glands.

The LTP flexible conduit also offers:

  • High mechanical strength and flexibility.
  • UV resistance.
  • Temperature tolerance range between -20oC and +105oC.
  • Resistant to oils and greases.
  • Ingress protection ratings: IP66, IP67, IP68 (5 bar) and IP69K.

Suitable connectors and fittings include standard conduit glands, swivel glands and EXD barrier glands (to create a Hazardous Area flexible conduit system).

Conduit fittings and installation accessories are also available. Please contact our Sales Team with your requirements.

Add to quote
SKU: LTP Categories: , , , , , , ,

Flexicon galvanised steel, PVC covered liquid-tight flexible conduits.

Order Reference Product Name Length Diameter Colour Qty Add to quote
LTP20B-10M
10m
20.0mm
Black
Add
LTP20B-25M
25m
20.0mm
Black
Add
LTP20B-50M
50m
20.0mm
Black
Add
LTP25B-10M
10m
25.0mm
Black
Add
LTP32B-10M
10m
32.0mm
Black
Add
LTP32B-25M
25m
32.0mm
Black
Add
LTP40B-10M
10m
40.0mm
Black
Add
LTP50B-10M
10m
50.0mm
Black
Add
LTP63B-10M
10m
63.0mm
Black
Add
Can’t find what you’re looking for? Contact ETS on +44 (0) 20 8405 6789
or email: sales@etscablecomponents.com

Due to manufacturer design changes, some of the selection charts and other technical information published may change at short notice.

For the most current product technical data sheets, please contact us on 00 44 (0)20 8405 6789 or via sales@etscablecomponents.com
