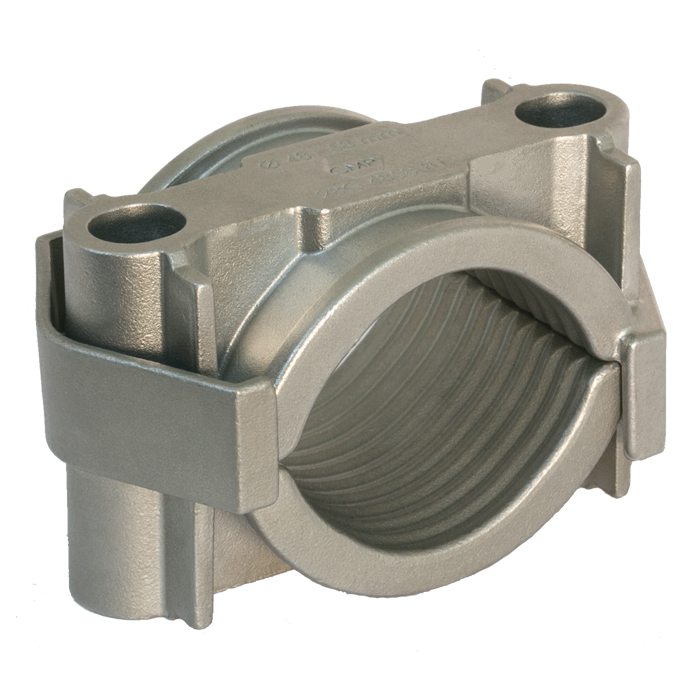

CMP Themis Cleat

The Themis Heavy Duty, Two Bolt, High Temperature Fire Rated Stainless Steel single cable cleat which has been designed, constructed, and tested in accordance with the International Standard IEC 61914: Cable cleats for electrical installations. It ensures the retention and securing of single cables, without damaging or deforming the cable.

These Fire Rated cable cleats can be used with fire performance cables to ensure the safe retention and securing of single cables in the event of a wiring system being affected by fire. These fire resisting supports help to maintain the electrical systems integrity for any critical circuits during an emergency situation to enable safe evacuation. The cable cleat is manufactured from Stainless Steel 316L making it suitable for both indoor and outdoor applications.

Due to its unique twin arc internal patent pending design profile it exhibits excellent retention, limiting both the axial and lateral movement. The Themis Two Bolt cable cleats have an excellent range take and are suitable for cable diameters of 38mm up to 109mm in only six sizes. This cable cleat has two clearance holes for securing it to a mounting surface, which depending on cleat size, allows for either M10, M12 or M14 fasteners to be used.

FEATURES

• 316L Stainless Steel
• Operating temperature -60°C to +250°C
• Surpasses requirements of Fire testing BS5839 / BS8491 / EN50200 / BS8434 / AS-NZS 3013 (1,200°C) (Fire, shock & water)
• 38 – 109mm cable range take in 6 sizes
• Can be stacked
• Excellent axial & lateral load retention
• Corrosion resistant
