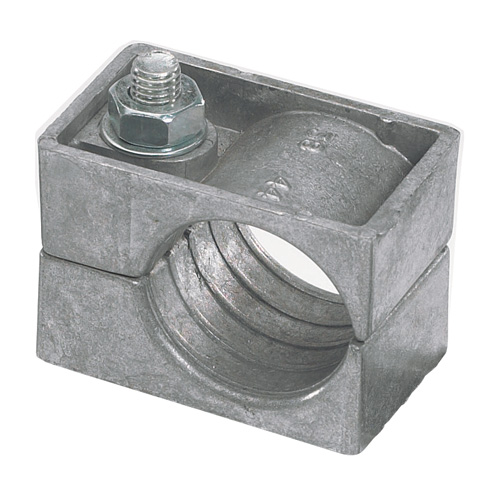

Image for Aluminium Single Bolt Cable Cleats
For up to date technical data please get in touch
+44 (0) 20 8405 6789
or email: sales@etscablecomponents.com

Aluminium Single Bolt Cable Cleats

Print this page
All Products

Our single bolt, single way, cast aluminium cable cleats are designed with space saving in mind. The aluminium cleats are designed to secure cables between 10mm to 71mm outside diameter (i.e. upto 300mm2 4core XLPE/SWA/LSF) and are ideal for stacking due to their unique design.

The single bolt aluminium cleat is designed to enable direct fixing onto steel channel or ladder support structures, no additional adaptor plates or packing pieces being required.

Available as standard in cast LM6 aluminium to BS1490, the product can also be supplied epoxy coated for use in extreme or contaminated environments.

Single bolt cleat fixing kits provide an easy solution to fixing the single way cleat to cable ladder rungs or 41mm wide steel channel. Each fixing kit contains: M10 threaded stud, hexagon nut, flat washer and plain channel nut.

Add to quote
SKU: 1ALM Categories: , , , , ,

Space saving, stackable, single bolt cast aluminium cable cleats.

Order Reference Product Name OD Minimum OD Maximum Qty Add to quote
1ALM01
10.0mm
13.0mm
Add
1ALM02
16.0mm
Add
1ALM03
16.0mm
19.0mm
Add
1ALM04
19.0mm
22.0mm
Add
1ALM05
22.0mm
26.0mm
Add
1ALM06
26.0mm
33.0mm
Add
1ALM07
33.0mm
39.0mm
Add
1ALM08
39.0mm
45.0mm
Add
1ALM09
45.0mm
51.0mm
Add
1ALM10
51.0mm
58.0mm
Add
1ALM11
58.0mm
65.0mm
Add
1ALM12
65.0mm
71.0mm
Add
